Photos of the Acrux, taken 7/11/02
Roll E

Disclaimer: please note that these photos were taken explicitly to show the damage to the boat, and not to enhance it's value or appearance. Therefore there is a perponderance of photos of damage, and not very many photos showing the good things of the boat. The photos were taken in a fair hurry in the rain (5 rolls--120 photos--within about an hour of time!), so the picture quality isn't the best--for which I appologize. However, they do show the problems, which is why I took them!

The other rolls:

  • Roll A
  • Roll B
  • Roll C
  • Roll D

    Photo 1 did not work.

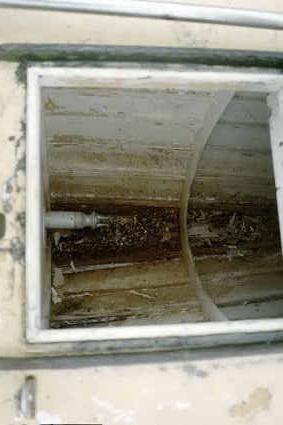

    2. Photo down port outrigger foreward hatch.

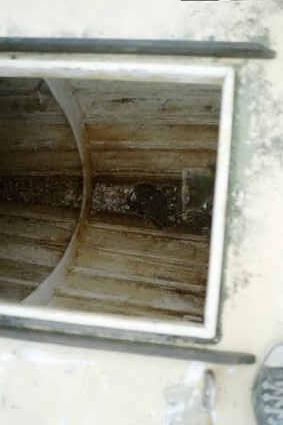

    3. Photo down starboard outrigger foreward hatch.

    4. Photo down starboard outrigger middle hatch.

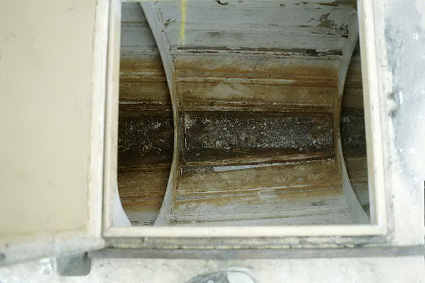

    5. Photo down starboard outrigger aft hatch.

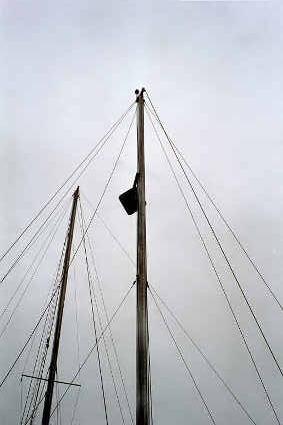

    6. Mast tops showing wires, ropes and radar
    reflector. Mizzen mast is centered in the photo
    (although it appears taller, it is actually shorter).

    7. Main mast. Dark post just to the right of the mast
    is the dock piling. Also shows port outrigger, main
    cabin roof, mast ladder. There is a regular latter
    hanging from the port mast ladder.

    8. Port outrigger showing main cabin roof, cockpit,
    main mast, hatches and safety lines & stantions.
    Shows foreward 2/3 of boat.

    9. Port outrigger and aft end of boat, showing aft 1/3
    of boat. shows mast wire connections, mizzen mast,
    aft cabin, hatches, safety handles on aft cabin
    roof, cockpit, aft cabin windows.

    10. Aft end of Acrux, looking port. Shows fiberglass
    damage, broken wooden pieces sticking out, motor
    mount, steps up back, hatch.

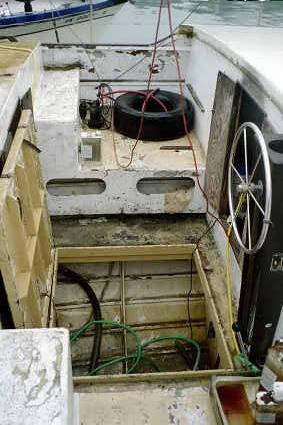

    11. Cockpit area, with the engine compartment open.

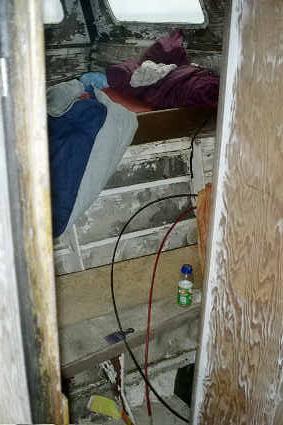

    12. Aft cabin, starboard bunk (looking through door).
    Shows bunk, bench, closet wall (right side of photo),
    windows.

    13. Aft cabin, port bunk. Shows boarded up windows,
    sanded wood. Taken through door.


    Photo 14 did not work.

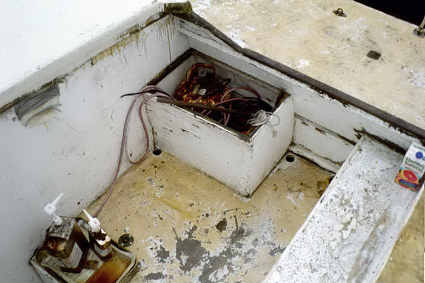

    15. Propane locker. Also shows starboard cockpit area,
    cockpit bench.

    16. Looking across the main cabin roof at the main
    mast. Shows mast ladder, main boom, bow. In the
    lower middle right there is also a hatch (just
    barely visible).

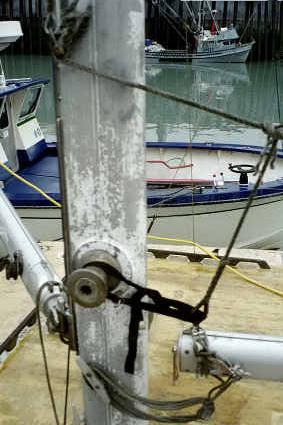

    17. Mizzen mast closeup, showing main boom and mizzen
    boom (plus assorted ropes and wires). Note the hand
    holds on the edge of the aft cabin roof (just above
    main boom).

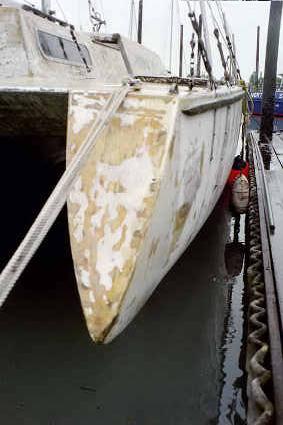

    18. Starboard outrigger aft end. Shows sanded
    fiberglass.

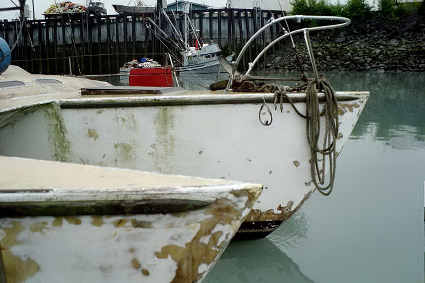

    19. Starboard outrigger bow and the main bow. Shows
    the safety rail around the main bow.

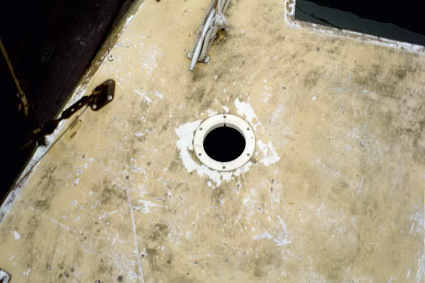

    20. Starboard outrigger aft end vent.

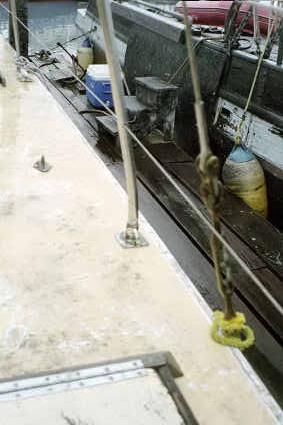

    21. Closeup of stantion (slightly bent) and safety
    lines. Also shows corner of hatch.

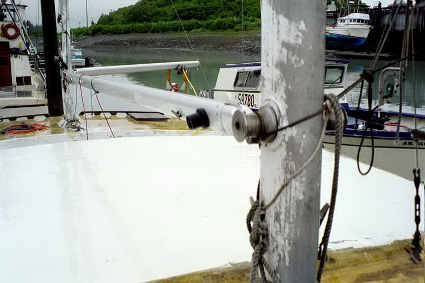

    22. Closeup of main mast and boom. Also shows winches
    and ropes.

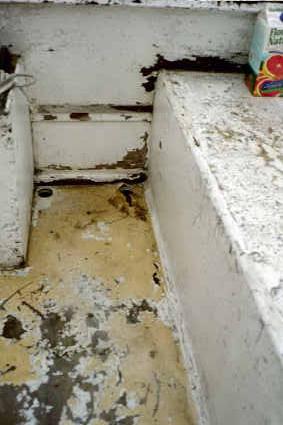

    23. Damaged fiberglass (very center of photo, at
    the junction of the far wall and the cockpit
    floor--hard to make out). Dark areas in lower
    center is just missing paint. Box in the left
    corner is the propane locker. Cockpit bench to
    right.

    24. Aft cabin door.
