Photo 1 did not work.

2. Burnt area, from floor to Nav table. Shows bilge
pump, patch that is burnt through the hull, etc.
Burnt part is painted white to seal odor.

3. Burnt area detail, showing side and the bottom of
the Nav table. Sponge in lower center is about 3
by 4.5 inches. All areas painted bright white are burnt.

4. Burnt area detail. Shows bilge pump. Sponge in
top center is about 3 by 4.5 inches. All areas
painted bright white are burnt.

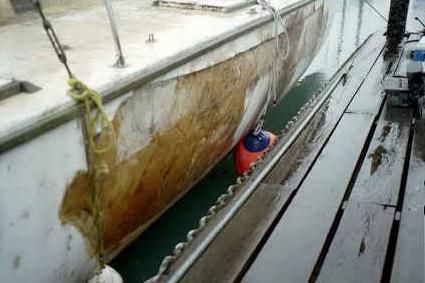

5. Starboard outrigger hull, shows fiberglass
delamination. Looking foreward.

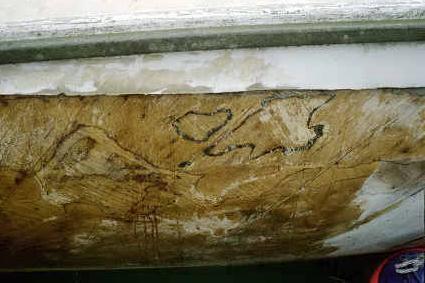

6. Starboard outrigger hull closeup. Shows areas
which have been sanded through multible layers of
wood (1-2 usually).

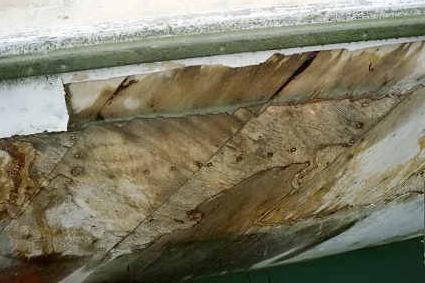

7. Starboard outrigger hull closeup. Shows areas
which have been sanded through multible layers of
wood (1-2 usually).

8. Starboard outrigger hull closeup. Shows area of
old damage that had been previously repaired and
fiberglass delamination.

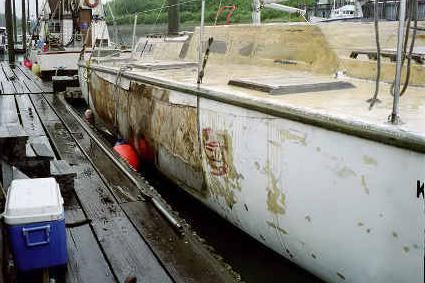

9. Starboard outrigger hull, shows fiberglass
delamination. Looking aft.

10. Aft end of Acrux, showing aft cabin, starboard
outrigger, masts, mast ladder and aft compartment.
Port window is boarded up.

11. Aft end of boat, showing old framework that used to
stick out from the aft end; motor mount and fiberglass
that has been sanded.

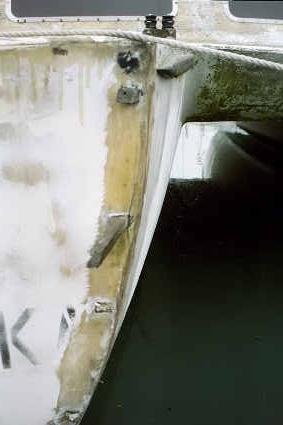

12. Aft end detail, showing old framework and how it
penetrates the aft end--and how it is broken off.

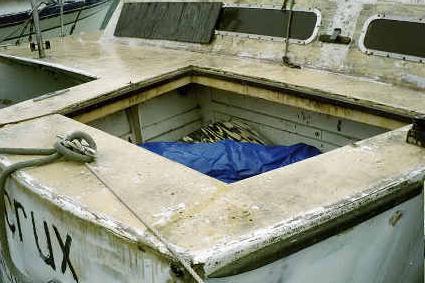

13. Aft end hatch & compartment. Also shows aft cabin windows.

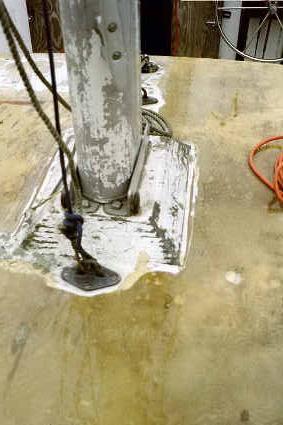

14. Mizzen mast base and aft cabin roof.

15. Port outrigger, shows hatches, safety lines, main
cabin windows (sort of--they are fiberglassed over so
you can't see them unless you know where to look!).
Also shows the side of the outrigger, which used to be
like that of the starboard side (missing fiberglass),
but has been re-glassed.

16. Low quality version of #17; deleted.

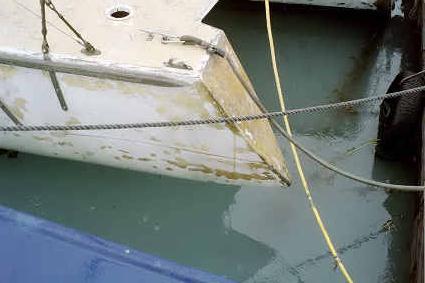

17. Port outrigger aft end and outrigger vent. Shows
sanded fiberglass on hulls, also mizzen mast wire
attachment and vent (top left center).

18. Fuzzy view of the patched hole in the hull (center
left), caused by the fire. Black spot is smoke damage
from fire.

19. Aft end, showing bridge between outrigger and main
hull. Shows fiberglass tearing off.

20. Aft end, showing crack in fiberglass (just above
center of photo, running from hull on right to open
hatch corner on left). The cracks has been coated
with resin.

21. Port outrigger and deck area, looking foreward. In
the right center the fiberglass is peeling from the
edge of the cockpit wall. Lower right corner shows
boarded up aft cabin window. Shows the three hatches
into the outrigger. Safety lines to the left.

22. Port outrigger, showing center hatch, and the main
cabin windows and roof.

23. Port side foreward hatch. Shows end of mast ladder
wire (top left center) and window into main cabin, and
main cabin roof.

24. Top view of port bow, showing vent and broken tip.
